Scenario 34

License

If you want to use the dataset or scripts on this page, please use the link below to generate the final list of papers that need to be cited.

Overview

The figure on the left shows the elevation view of the street and the surroundings in scenario 34. The field of view (FoV) of the base station (Unit 1) is highlighted. The figure on the right shows the traffic and street view from Unit 1 perspective.

Scenario 34 is collected in an outdoor wireless environment representing a two-way city street. The DeepSense Testbed is deployed in this environment where the two units are placed on the opposite sides of the street. The transmitter (Unit 2) constantly transmits using one antenna element of the phased array to realize omnidirectional transmission. The receiver continuously scans the surrounding environment using a receive mmWave beam steering codebook of 64 beams and by measuring the receive power with each beam. The average sampling rate is 10 samples/s. Each data sample includes an RGB image, a 64-element receive power vector, a 3D LiDAR image, and an FMCW radar signal, all collected by Unit 1. Please refer to the detailed description of the testbed presented here.

College Ave: It is a two-way street with 2 lanes, a width of 13 meters, and a vehicle speed limit of 25mph (40.6 km per hour). It is worth mentioning here that since this is a city street, vehicles of various sizes and travel speeds pass in both directions, along with pedestrians walking on both sides of the street. This creates a diverse pool of blockages for the LOS link between the transmitter and receiver, which results in diverse received power maps (i.e., diverse power fluctuations across all 64 beam over time instances) and a diverse dataset.

Collected Data

Overview

Number of Data Collection Units: 2 (using DeepSense Testbed #5)

Total Number of Data Samples: 4439

Data Modalities: RGB images, 64-dimensional received power vector, GPS locations, a 3D LiDAR image, and an FMCW radar signal

Sensors at Unit 1: (Stationary Receiver)

  • Wireless Sensor [Phased Array]: A 16-element antenna array operating in the 60 GHz frequency band and receives the transmitted signal using an over-sampled codebook of 64 pre-defined beams
  • Visual Sensor [Camera]: The main visual perception element in the testbed is an RGB-D camera. The camera is used to capture RGB images of 960×540 resolution at a base frame rate of 30 frames per second (fps)
  • Position Sensor [GPS Receiver]: A GPS-RTK receiver for capturing accurate real-time locations for the stationary unit 1
  • LiDAR Sensor [3D laser scanner]: This system provides the range and angle data of objects within its range of view. The scanning range of the 3D LiDAR is 100 meters and the maximum motor spin frequency is 20Hz.
  • MmWave radar sensor [Ranging sensor]: For the Frequency Modulated Continuous Wave (FMCW) radar, we adopted a set of radar parameters based on the Texas Instrument (TI’s) short range radar (SRR) example, given by B = 750 MHz, µ = 15 MHz/us, A = 128 chirps/frame, S = 256 samples/chirp. These settings provide the maximum range of 45m and the maximum velocity of 56 km/h.
  • MmWave radar sensor [Ranging sensor]: For the Frequency Modulated Continuous Wave (FMCW) radar each sample contains a 3D complex radar frame samples of (# of RX antennas) x (# of samples per chirp) x (# of chirps per frame).
  • Active TX antennas: 1
  • Active RX antennas: 4
  • #of samples per chirp: 256
  • # of chirps per frame: 250
  • ADC sampling rate: 6200 Ksps
  • Chirp slope: 8.014 MHz/us
  • Chirp Start Frequency: 77 GHz
  • Ramp end time: 47.5 us
  • ADC start time: 4.2 us
  • Idle time: 2 us
  • Receiver gain: 30dB
  • Radar frames per second: 10

Sensors at Unit 2: (Mobile Transmitter)

  • Wireless Sensor [Phased Array]: A stationary 60 GHz mmWave transmitter. The transmitter (Unit 2) constantly transmits using one antenna element of the phased array to realize omnidirectional transmission
  • Position Sensor [GPS Receiver]: A GPS-RTK receiver for capturing accurate real-time locations for the stationary unit 2
Testbed5
Instances4439
Number of Units2
Data ModalitiesRGB images, 64-dimensional received power vector, GPS locations, LiDAR point cloud, radar data
Unit1
TypeStationary
Hardware ElementsRGB camera, mmWave phased array receiver, GPS receiver, , LIDAR and mmWave radar
Data ModalitiesRGB images, 64-dimensional received power vector, GPS locations, LiDAR point cloud, radar data
Unit2
TypeMobile
Hardware ElementsmmWave omni-directional transmitter, GPS receiver
Data ModalitiesGPS locations

Data Visualization

Download

Please login to download the DeepSense datasets

How to Access Scenario 34 Data?

Step 1. Download Scenario Data

Step 2. Extract the scenario34.zip file

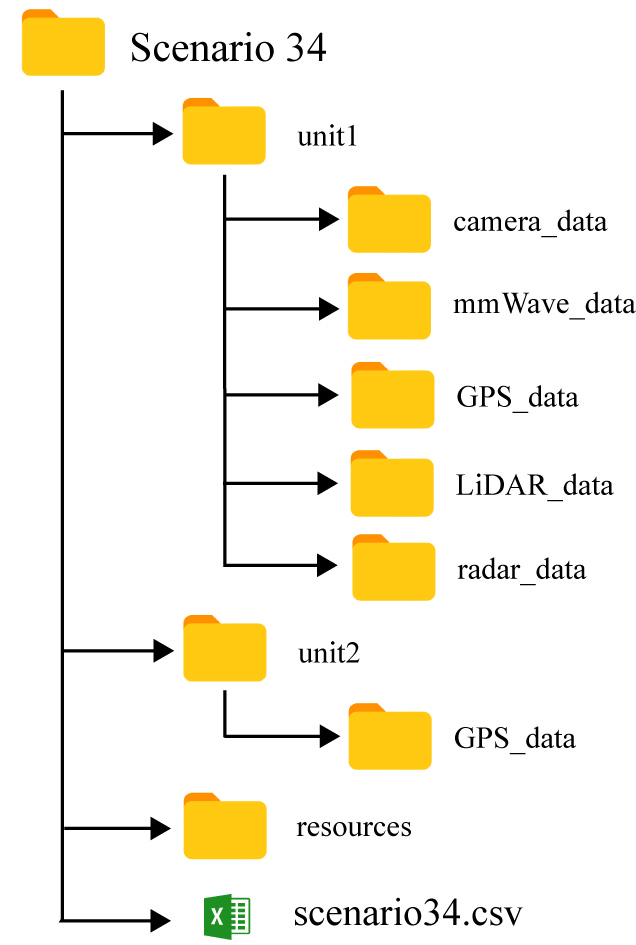

Scenario 34 folder consists of three sub-folders:

  • unit1: Includes the data captured by unit 1
  • unit2: Includes the data captured by unit 2
  • resources: Includes the scenario-specific annotated dataset, data labels, and other additional information. For more details, refer to the resources section below.
The scenario 34 folder also includes the “scenario 34.csv” file with the paths to all the collected data. For each coherent time, we provide the corresponding visual, wireless, and GPS data.

Resources

What are the Additional Resources?

Resources consist of the following information:

  • data labels: The labels comprises of the ground-truth beam indices computed from the mmWave received power vectors, the direction of travel (unit2), and the sequence index
  • additional information: Includes the scenario-specific additional data. Details of the information is provided below

Data Labels

The labels comprises of the ground-truth beam indices computed from the mmWave received power vectors, the direction of travel (unit2), and the sequence index.

  • Ground-Truth Beam: The phased array of unit 1 utilizes an over-sampled beamforming codebook of N = 64 vectors, which are designed to cover the field of view. It captures the received power by applying the beamforming codebook elements as a combiner. For each received power vector of dimension [64 x 1], the index with the maximum received power value is selected as the optimal beam index.
  • Sequence Index: During the data collection process, the mobile transmitter (unit2) travelled multiple times in front of the base station (unit1). For each run, the testbed collects multiple data samples. All the data samples with the same sequence index belongs to the same run

Additional Information

We, further, provide additional information for each sample present in the scenario dataset. The contents of the additional data is listed below:

  • index: It represents the sample number
  • time_stamp [UTC]:  This represents the time of data capture in “hr-mins-secs-ms” format
  • unit2_num_sats: For each data sample, it is an integer value representing the number of connected satellites at that time instant
  • unit2_spd_over_grnd_kmph: This represents the speed of mobility of Unit 2. Unit 2 is carried on a vehicle.
  • unit2_mode_fix_type: This shows whether or not there was a 3D fix. A 3D (three dimensional) position fix includes horizontal coordinates plus altitude. It requires a minimum of four visible satellites.
  • unit2_PDOP: PDOP (position dilution of precision) describes the error caused by the relative position of the GPS satellites
  • unit2_HDOP: HDOP represents the horizontal dilution of precision
  • unit2_VDOP: VDOP represents the vertical dilution of precision
  • unit2_interpolated_position: a value of “0” denotes a captured data sample while a value of “1” denotes a data sample with an interpolated position from the captured data

Warning on NaN values: Some samples (<1%) in the column ‘unit1_pwr_60ghz’ contain NaNs (not-a-value). These  NaNs result from random, real-world sensor errors. In the context of received power, NaNs can be considered as zeros. Assuming that pwr_vect is our received power vector, one can explicitly convert the NaNs into zeros by doing pwr_vect(isnan(pwr_vect)) = 0 in Matlab or  pwr_vect[np.isnan(pwr_vect)] = 0 in Python.

An example table comprising of the data labels and the additional information is shown below.
index unit1_beam unit1_max_pwr time_stamp seq_index unit2_spd_over_grnd_kmph unit2_num_sats unit2_altitude unit2_geo_sep unit2_mode_fix_type unit2_pdop unit2_hdop unit2_vdop unit2_interpolated_position
154 44 0.163471743 06:36:42-766040 2 24.624 12 354.843 -27.75 3 0.95 0.47 0.83 0
155 42 0.213177606 06:36:42-857299 2 24.454 12 354.849 -27.75 3 0.99 0.48 0.86 0
156 42 0.257430255 06:36:43-040538 2 24.305 12 354.849 -27.75 3 0.95 0.47 0.83 0
157 43 0.226178214 06:36:43-134934 2 24.275 12 354.849 -27.75 3 0.95 0.47 0.83 0
158 43 0.2665416 06:36:43-224733 2 23.684 12 354.854 -27.75 3 0.95 0.47 0.83 0
159 43 0.211459622 06:36:43-318255 2 1
160 42 0.233156577 06:36:43-411270 2 1
161 42 0.357999384 06:36:43-509151 2 23.644 12 354.856 -27.749 3 0.94 0.46 0.81 0
162 44 0.28656888 06:36:43-596704 2 23.142 12 354.874 -27.749 3 0.94 0.46 0.81 0
163 43 0.25969559 06:36:43-690379 2 23.412 12 354.872 -27.749 3 0.94 0.46 0.81 0
